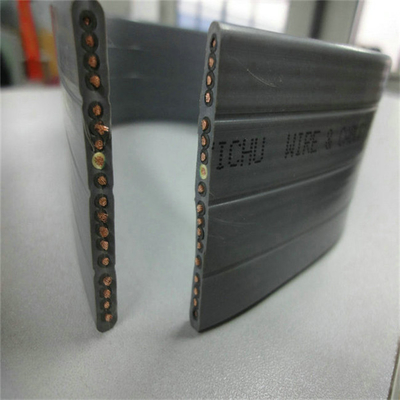

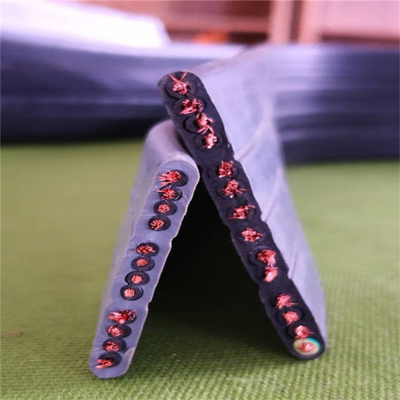

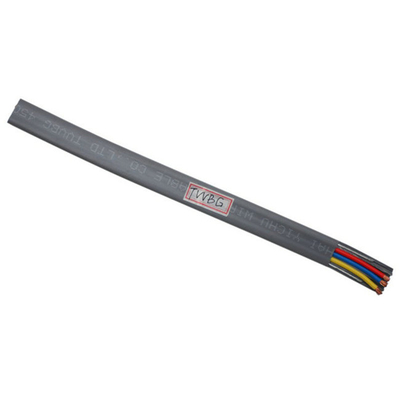

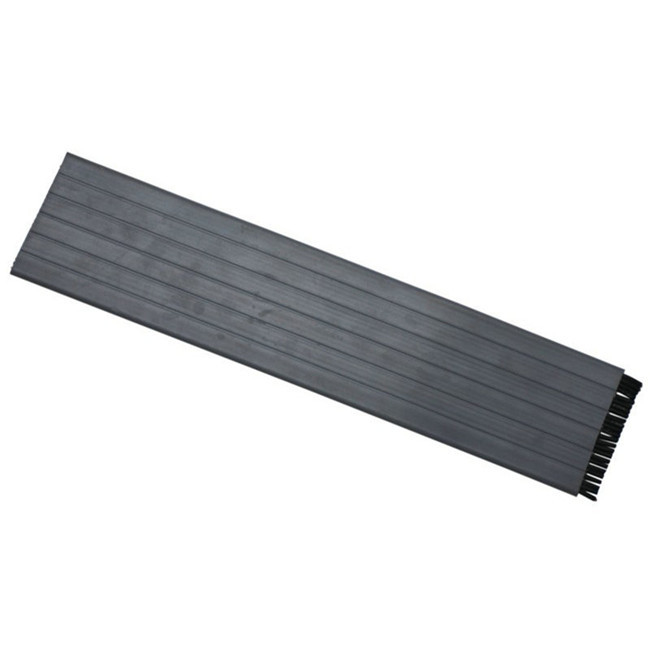

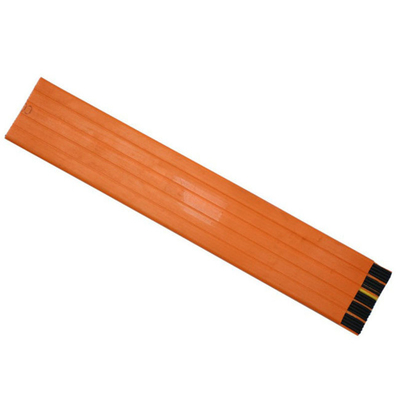

Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F

Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F

    • Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F
    • Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F
    • Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F
    • Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F
    • Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F
    • Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F

    Product Details:

    Place of Origin: China
    Brand Name: ECHU
    Certification: CCC,CE,UL
    Model Number: TVVB /H05VVH6-F/ H07VVH6-F

    Payment & Shipping Terms:

    Minimum Order Quantity: 300M
    Price: USD2.88
    Packaging Details: REELS, DRUM,ROLLS
    Delivery Time: 7-10days
    Payment Terms: T/T
    Supply Ability: 1000000000000METERS
    Contact Now
    Detailed Product Description
    Type: Low Voltage,Elevator Parts,elevator Cable Application: Construction,elevator
    Conductor Material: Copper Jacket: PVC
    Insulation Material: PVC,Rubber Product Name: Elevator Cable,TVVB2G-STP Travel Cable,flat Cctv Cable For Elevator Braiding Shield Elevator Cable,elevator Travelling
    Rated Voltage: 300/500V,450/750V Color: Black,Customized
    Conductor: Bare Copper Standard: IEC60502;BS6346,ISO9001/OHSAS18001/CCC/UL
    Insulation: Rubber / PVC Working Temperature: -25℃-90℃,-20℃~70℃
    Core: Multi-core,36-48 Sheath: Flame Retardant PVC,PVC Sheath
    Shield: Tinned Copper Braiding Name: Low Voltage Elevator Flat Cable,elevator Traveling Cable Price
    Package: Drum Flame Resistance: Yes,on Request
    Voltage: Low Voltage

    Low Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-FLow Voltage Flat Elevator Travel Cable TVVB H05VVH6-F H07VVH6-F



    Approvals: CCC & CE approval


    Conductor:bare copper , VDE 0295 class 5
    Insulation:special PVC
    Sheath: special PVC
    flexible, wear -resistant ,cold-resistant

    Range of application:
    As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
    Properties:
    The outer sheath is extensively resistant to oil and cooling liquid.
    Standards:GB5023.6,IEC60227-6,EN 50214
    Structure:
    Conductor: fine strands of bare copper wire,
    Acc.to VDE0295 CLASS5
    Insulation:special PVC
    Colour:yellow,white,orangeg with black number with white digital coding
    Bearing:steel rope
    Outer sheath:flexible PVC,cold resistance ,flame resistance
    Colour:grey(RAL7001)
    Technical data:
    Rated voltage:300/500V
    Test voltage:2500V
    Minimum bending radius:0.3m<L<0.6M
    Burning vertically test:GB/T18380.1-2001
    IEC60332-1.1 993 test passed
    Used under the nomal conditions.the temperature of conductor is lower than 70°C
    Temperature range:-15°C to +70°C
    TVVB (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s.
    TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.



    Type Cores Spec. Width mm Thickness mm Weight (kg/km)
    TVVB 24 0.75 64.7±2.5 4.2±0.5 537
    TVVB 24 0.75 31.3±2.0 8.4±0.5 470
    TVVB 30 0.75 39.9±2.0 7.8±0.5 582
    TVVB 36 0.75 43.5±2.0 8.4±0.5 691
    TVVB 40 0.75 50.7±2.0 7.8±0.5 748
    TVVB 42 0.75 49.5±2.0 8.4±0.5 791
    TVVB 48 0.75 55.5±2.0 8.4±0.5 891
    TVVB 54 0.75 61.5±2.5 8.4±0.5 990
    TVVB 60 0.75 67.5±2.5 8.4±0.5 1090
    TVVB 66 0.75 73.5±2.5 8.4±0.5 1190
    TYPE CORES SPEC. Shielding Width mm Thickness mm Weight (kg/km)
    TVVBP 24 0.75 2*2P*0.75(bare copper braid) 44.3±2.0 8.4±0.5 824
    TVVBP 30 0.75 2*2P*0.75(bare copper braid) 53.1±2.0 7.8±0.5 925
    TVVBP 36 0.75 2*2P*0.75(bare copper braid) 56.8±2.0 8.4±0.5 1042
    TVVBP 40 0.75 2*2P*0.75(bare copper braid) 64.2±2.5 7.8±0.5 1087
    TVVBP 42 0.75 2*2P*0.75(bare copper braid) 63.0±2.5 8.4±0.5 1140
    TVVBP 48 0.75 2*2P*0.75(bare copper braid) 69.1±2.5 8.4±0.5 1238
    TVVBP 54 0.75 2*2P*0.75(bare copper braid) 75.3±2.5 8.4±0.5 1336
    TVVBP 60 0.75 2*2P*0.75(bare copper braid) 81.4±2.5 8.4±0.5 1434
    TVVBP 66 0.75 2*2P*0.75(bare copper braid) 87.6±2.5 8.4±0.5 1533
    TVVBP(G) 24 0.75 2*2P*0.75(bare copper braid) 53.3±2.0 7.8±0.5 963
    TVVBP(G) 30 0.75 2*2P*0.75(bare copper braid) 61.3±2.5 8.4±0.5 1047
    TVVBP(G) 36 0.75 2*2P*0.75(bare copper braid) 65.0±2.5 7.8±0.5 1171
    TVVBP(G) 40 0.75 2*2P*0.75(bare copper braid) 72.4±2.5 8.4±0.5 1210
    TVVBP(G) 42 0.75 2*2P*0.75(bare copper braid) 72.2±2.5 8.4±0.5 1301
    TVVBP(G) 48 0.75 2*2P*0.75(bare copper braid) 78.3±2.5 8.4±0.5 1399
    TVVBP(G) 54 0.75 2*2P*0.75(bare copper braid) 84.5±2.5 8.4±0.5 1497
    TVVBP(G) 60 0.75 2*2P*0.75(bare copper braid) 90.6±2.5 8.4±0.5 1596
    TVVBP(G) 66 0.75 2*2P*0.75(bare copper braid) 96.8±2.5 8.4±0.5 1694
