Round Pendant Cable 14C*1.25 For Crane and Lifter

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	RVV2G 16*1.5MM2

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD1
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

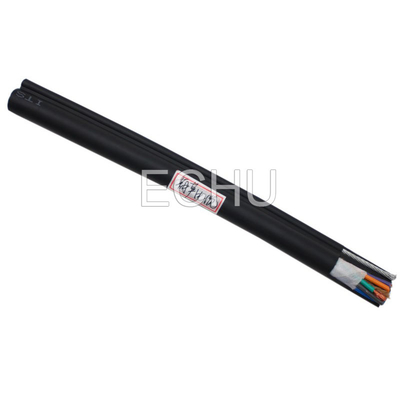

Pendant Cable :
Special flexibility
Temperature range:-15 to +70
Bending radius :20 X outer diameter
one or two steel rope

Applications:
It is the control cable being used for cranes and other appliances in dry or wet indoor.

Properties:

In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4GN and the height 150m. For the adoption of modified PVC sheath,the product has an excellent properties and safty service.

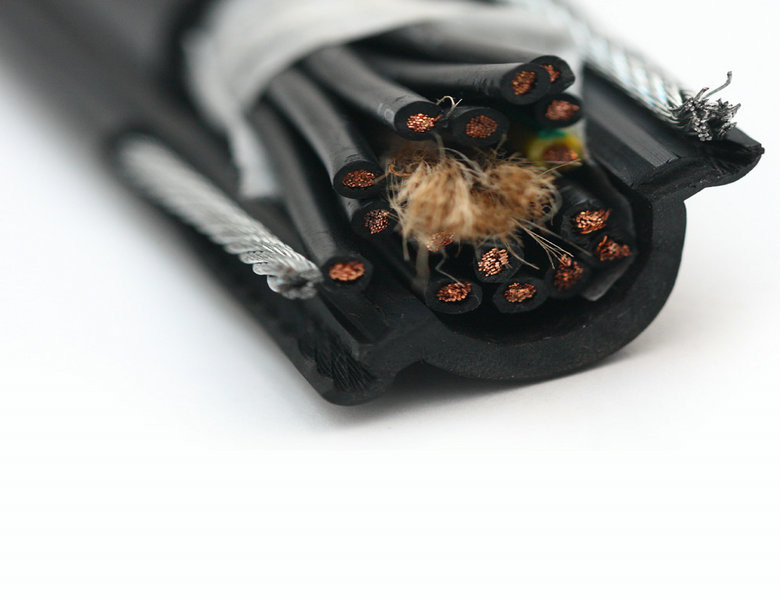

Structure:

Conductor: Fine strands of oxygen-free copper wire. According to VDE0295 CLASS 5.

Color: Various color cores with number Acc.to JISC3306

Black wit white number and green/yellow acc.to IEC227

Inner liner: non-woven fabric wrapping to release impact

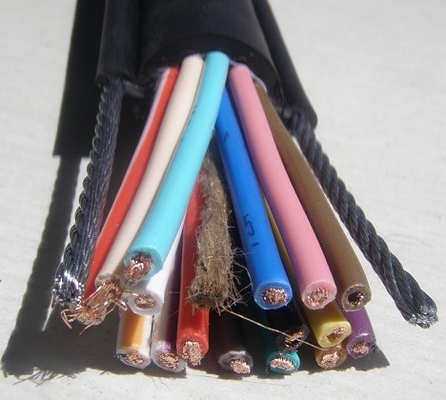

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.

Outer sheath: special PVC, black (RAL9005)
Rated Voltage:<1.5mm2: 300/500v, >1.5mm2 :450/750v Test Voltage:<1.5MM2:2500V , >1.5MM2:3000V

Round Pendant Cable 14C*1.25 For Crane and Lifter

Type	Cores	Spec.	Supporting Steel No.	Steel Dia. mm	Weight (KG/KM)	Outer Dia. mm
RVV(1G)	2C	0.75	1	1.3	101	11.4
RVV(1G)	3C	0.75	1	1.3	114	11.9
RVV(1G)	4C	0.75	1	1.3	133	12.5
RVV(1G)	5C	0.75	1	1.3	154	13.3
RVV(1G)	6C	0.75	1	1.3	176	14.1
RVV(1G)	7C	0.75	1	1.3	200	15.7
RVV(1G)	8C	0.75	1	1.6	232	17.1
RVV(1G)	9C	0.75	1	1.6	259	17.9
RVV(1G)	10C	0.75	1	1.6	273	17.9
RVV(1G)	11C	0.75	1	1.6	294	18.3
RVV(1G)	12C	0.75	1	1.6	300	18.3
RVV(1G)	13C	0.75	1	1.6	327	19
RVV(1G)	14C	0.75	1	1.6	334	19
RVV(1G)	15C	0.75	1	1.6	364	19.8
RVV(1G)	16C	0.75	1	1.6	370	19.8
RVV(1G)	17C	0.75	1	2.5	422	21.6
RVV(1G)	18C	0.75	1	2.5	429	21.6
RVV(1G)	19C	0.75	1	2.5	439	21.6
RVV(1G)	20C	0.75	1	2.5	457	22.1
RVV(1G)	21C	0.75	1	2.5	478	22.4
RVV(1G)	22C	0.75	1	2.5	530	23.5
RVV(1G)	23C	0.75	1	2.5	554	24.3
RVV(1G)	24C	0.75	1	2.5	560	24.3
RVV(1G)	25C	0.75	1	2.5	583	24.7
RVV(1G)	26C	0.75	1	2.5	593	24.7
RVV(1G)	27C	0.75	1	2.5	600	24.7
RVV(1G)	28C	0.75	1	2.5	632	25.4
RVV(1G)	29C	0.75	1	2.5	639	25.4
RVV(1G)	30C	0.75	1	2.5	649	25.4
RVV(1G)	31C	0.75	1	2.5	684	26.2
RVV(1G)	32C	0.75	1	2.5	694	26.2
RVV(1G)	33C	0.75	1	2.5	701	26.2
RVV(1G)	34C	0.75	1	2.5	738	27
RVV(1G)	35C	0.75	1	2.5	748	27
RVV(1G)	36C	0.75	1	2.5	755	27

RVV(1G)	2C	1	1	1.3	116	12
RVV(1G)	3C	1	1	1.3	132	12.5
RVV(1G)	4C	1	1	1.3	155	13.2
RVV(1G)	5C	1	1	1.3	181	14.1
RVV(1G)	6C	1	1	1.3	208	15
RVV(1G)	7C	1	1	1.3	237	16.7
RVV(1G)	8C	1	1	1.6	276	18.2
RVV(1G)	9C	1	1	1.6	308	19.1
RVV(1G)	10C	1	1	1.6	327	19.1
RVV(1G)	11C	1	1	1.6	352	19.5
RVV(1G)	12C	1	1	1.6	360	19.5
RVV(1G)	13C	1	1	1.6	394	20.3
RVV(1G)	14C	1	1	1.6	402	20.3
RVV(1G)	15C	1	1	1.6	439	21.2
RVV(1G)	16C	1	1	1.6	447	21.2
RVV(1G)	17C	1	1	2.5	506	23.1
RVV(1G)	18C	1	1	2.5	515	23.1
RVV(1G)	19C	1	1	2.5	528	23.1
RVV(1G)	20C	1	1	2.5	550	23.5
RVV(1G)	21C	1	1	2.5	576	24
RVV(1G)	22C	1	1	2.5	639	25.2
RVV(1G)	23C	1	1	2.5	669	26
RVV(1G)	24C	1	1	2.5	676	26
RVV(1G)	25C	1	1	2.5	705	26.5
RVV(1G)	26C	1	1	2.5	718	26.5
RVV(1G)	27C	1	1	2.5	727	26.5
RVV(1G)	28C	1	1	2.5	766	27.3
RVV(1G)	29C	1	1	2.5	775	27.3
RVV(1G)	30C	1	1	2.5	788	27.3
RVV(1G)	31C	1	1	2.5	831	28.1
RVV(1G)	32C	1	1	2.5	844	28.1
RVV(1G)	33C	1	1	2.5	853	28.1
RVV(1G)	34C	1	1	2.5	898	29
RVV(1G)	35C	1	1	2.5	911	29
RVV(1G)	36C	1	1	2.5	920	29

RVV(1G)	2C	1.25	1	1.3	133	13
RVV(1G)	3C	1.25	1	1.3	154	13.5
RVV(1G)	4C	1.25	1	1.3	183	14.4
RVV(1G)	5C	1.25	1	1.3	214	15.3
RVV(1G)	6C	1.25	1	1.3	246	16.4
RVV(1G)	7C	1.25	1	1.6	283	18.5
RVV(1G)	8C	1.25	1	1.6	322	19.9
RVV(1G)	9C	1.25	1	1.6	359	20.9
RVV(1G)	10C	1.25	1	1.6	387	20.9
RVV(1G)	11C	1.25	1	1.6	418	21.5
RVV(1G)	12C	1.25	1	1.6	432	21.5
RVV(1G)	13C	1.25	1	1.6	471	22.4
RVV(1G)	14C	1.25	1	1.6	485	22.4
RVV(1G)	15C	1.25	1	1.6	526	23.3
RVV(1G)	16C	1.25	1	2.5	561	24.4
RVV(1G)	17C	1.25	1	2.5	604	25.4
RVV(1G)	18C	1.25	1	2.5	618	25.4
RVV(1G)	19C	1.25	1	2.5	638	25.4
RVV(1G)	20C	1.25	1	2.5	665	25.9
RVV(1G)	21C	1.25	1	2.5	697	26.4
RVV(1G)	22C	1.25	1	2.5	768	27.8
RVV(1G)	23C	1.25	1	2.5	797	28.8
RVV(1G)	24C	1.25	1	2.5	809	28.8
RVV(1G)	25C	1.25	1	2.5	843	29.4
RVV(1G)	26C	1.25	1	2.5	863	29.4
RVV(1G)	27C	1.25	1	2.5	877	29.4
RVV(1G)	28C	1.25	1	2.5	921	30.2
RVV(1G)	29C	1.25	1	2.5	935	30.2
RVV(1G)	30C	1.25	1	2.5	955	30.2
RVV(1G)	31C	1.25	1	2.5	1001	31.2
RVV(1G)	32C	1.25	1	2.5	1021	31.2
RVV(1G)	33C	1.25	1	2.5	1036	31.2
RVV(1G)	34C	1.25	1	2.5	1084	32.3
RVV(1G)	35C	1.25	1	2.5	1104	32.3
RVV(1G)	36C	1.25	1	2.5	1118	32.3

RVV(1G)	2C	1.5	1	1.3	146	13.1
RVV(1G)	3C	1.5	1	1.3	168	13.6
RVV(1G)	4C	1.5	1	1.3	200	14.5
RVV(1G)	5C	1.5	1	1.3	235	15.5
RVV(1G)	6C	1.5	1	1.3	273	16.5
RVV(1G)	7C	1.5	1	2.5	336	19.8
RVV(1G)	8C	1.5	1	2.5	384	21.2
RVV(1G)	9C	1.5	1	2.5	429	22.2
RVV(1G)	10C	1.5	1	2.5	455	22.2
RVV(1G)	11C	1.5	1	2.5	490	22.8
RVV(1G)	12C	1.5	1	2.5	503	22.8
RVV(1G)	13C	1.5	1	2.5	549	23.7
RVV(1G)	14C	1.5	1	2.5	561	23.7
RVV(1G)	15C	1.5	1	2.5	611	24.7
RVV(1G)	16C	1.5	1	2.5	624	24.7
RVV(1G)	17C	1.5	1	2.5	677	25.7
RVV(1G)	18C	1.5	1	2.5	689	25.7
RVV(1G)	19C	1.5	1	2.5	708	25.7
RVV(1G)	20C	1.5	1	2.5	739	26.2
RVV(1G)	21C	1.5	1	2.5	776	26.7
RVV(1G)	22C	1.5	1	2.5	863	28.1
RVV(1G)	23C	1.5	1	2.5	903	29.2
RVV(1G)	24C	1.5	1	2.5	914	29.2
RVV(1G)	25C	1.5	1	2.5	954	29.7
RVV(1G)	26C	1.5	1	2.5	972	29.7
RVV(1G)	27C	1.5	1	2.5	985	29.7
RVV(1G)	28C	1.5	1	2.5	1040	30.6
RVV(1G)	29C	1.5	1	2.5	1052	30.6
RVV(1G)	30C	1.5	1	2.5	1071	30.6
RVV(1G)	31C	1.5	1	2.5	1130	31.6
RVV(1G)	32C	1.5	1	2.5	1149	31.6
RVV(1G)	33C	1.5	1	2.5	1162	31.6
RVV(1G)	34C	1.5	1	2.5	1224	32.7
RVV(1G)	35C	1.5	1	2.5	1243	32.7
RVV(1G)	36C	1.5	1	2.5	1255	32.7

RVV(1G)	2C	2	1	1.3	164	12.5
RVV(1G)	3C	2	1	1.3	191	13.1
RVV(1G)	4C	2	1	1.3	229	14.1
RVV(1G)	5C	2	1	1.3	271	15.1
RVV(1G)	6C	2	1	1.3	315	16.2
RVV(1G)	7C	2	1	2.5	385	19.4
RVV(1G)	8C	2	1	2.5	441	20.9
RVV(1G)	9C	2	1	2.5	494	22
RVV(1G)	10C	2	1	2.5	525	22
RVV(1G)	11C	2	1	2.5	567	22.6
RVV(1G)	12C	2	1	2.5	583	22.6
RVV(1G)	13C	2	1	2.5	637	23.6
RVV(1G)	14C	2	1	2.5	653	23.6
RVV(1G)	15C	2	1	2.5	712	24.6
RVV(1G)	16C	2	1	2.5	728	24.6
RVV(1G)	17C	2	1	2.5	790	25.8
RVV(1G)	18C	2	1	2.5	806	25.8
RVV(1G)	19C	2	1	2.5	829	25.8
RVV(1G)	20C	2	1	2.5	866	26.3
RVV(1G)	21C	2	1	2.5	910	26.9
RVV(1G)	22C	2	1	2.5	1010	28.4
RVV(1G)	23C	2	1	2.5	1058	29.5
RVV(1G)	24C	2	1	2.5	1072	29.5
RVV(1G)	25C	2	1	2.5	1119	30
RVV(1G)	26C	2	1	2.5	1142	30
RVV(1G)	27C	2	1	2.5	1158	30
RVV(1G)	28C	2	1	2.5	1222	31
RVV(1G)	29C	2	1	2.5	1238	31
RVV(1G)	30C	2	1	2.5	1261	31
RVV(1G)	31C	2	1	2.5	1330	32.1
RVV(1G)	32C	2	1	2.5	1353	32.1
RVV(1G)	33C	2	1	2.5	1370	32.1
RVV(1G)	34C	2	1	2.5	1442	33.2
RVV(1G)	35C	2	1	2.5	1465	33.2
RVV(1G)	36C	2	1	2.5	1482	33.2

RVV(1G)	2C	2.5	1	1.3	200	15.2
RVV(1G)	3C	2.5	1	1.3	236	15.9
RVV(1G)	4C	2.5	1	1.3	285	17
RVV(1G)	5C	2.5	1	1.3	337	18.3
RVV(1G)	6C	2.5	1	2.5	402	21.9
RVV(1G)	7C	2.5	1	2.5	473	23.2
RVV(1G)	8C	2.5	1	2.5	539	25
RVV(1G)	9C	2.5	1	2.5	603	26.4
RVV(1G)	10C	2.5	1	2.5	651	26.4
RVV(1G)	11C	2.5	1	2.5	705	27.1
RVV(1G)	12C	2.5	1	2.5	729	27.1
RVV(1G)	13C	2.5	1	2.5	796	28.3
RVV(1G)	14C	2.5	1	2.5	851	28.3
RVV(1G)	15C	2.5	1	2.5	932	29.6
RVV(1G)	16C	2.5	1	2.5	950	29.6
RVV(1G)	17C	2.5	1	2.5	1036	30.9
RVV(1G)	18C	2.5	1	2.5	1055	30.9
RVV(1G)	19C	2.5	1	2.5	1084	30.9
RVV(1G)	20C	2.5	1	2.5	1133	31.6
RVV(1G)	21C	2.5	1	2.5	1192	32.3
RVV(1G)	22C	2.5	1	2.5	1334	34.1
RVV(1G)	23C	2.5	1	2.5	1398	35.4
RVV(1G)	24C	2.5	1	2.5	1414	35.4
RVV(1G)	25C	2.5	1	2.5	1477	36.1
RVV(1G)	26C	2.5	1	2.5	1507	36.1
RVV(1G)	27C	2.5	1	2.5	1525	36.1
RVV(1G)	28C	2.5	1	2.5	1613	37.3
RVV(1G)	29C	2.5	1	2.5	1633	37.3
RVV(1G)	30C	2.5	1	2.5	1662	37.3
RVV(1G)	31C	2.5	1	2.5	1757	38.6
RVV(1G)	32C	2.5	1	2.5	1786	38.6
RVV(1G)	33C	2.5	1	2.5	1806	38.6
RVV(1G)	34C	2.5	1	2.5	1907	40
RVV(1G)	35C	2.5	1	2.5	1936	40
RVV(1G)	36C	2.5	1	2.5	1955	40
RVV(1G)	37C	2.5	1	2.5	1984	40

RVV(1G)	2C	4	1	1.6	264.3	16.9
RVV(1G)	3C	4	1	1.6	316.9	17.7
RVV(1G)	4C	4	1	1.6	385.7	19.06
RVV(1G)	5C	4	1	1.6	459.8	20.55
RVV(1G)	6C	4	1	2.5	559.1	23.96
RVV(1G)	7C	4	1	2.5	636.8	25.53
RVV(1G)	8C	4	1	2.5	727.7	27.61
RVV(1G)	9C	4	1	2.5	817.7	29.18
RVV(1G)	10C	4	1	2.5	885.7	29.18
RVV(1G)	11C	4	1	2.5	962.4	29.98
RVV(1G)	12C	4	1	2.5	999.9	29.98
RVV(1G)	13C	4	1	2.5	1092.8	31.34
RVV(1G)	14C	4	1	2.5	1171.4	31.34
RVV(1G)	15C	4	1	2.5	1283.6	32.83
RVV(1G)	16C	4	1	2.5	1313.3	32.83
RVV(1G)	17C	4	1	2.5	1431.7	34.4
RVV(1G)	18C	4	1	2.5	1461.5	34.4
RVV(1G)	19C	4	1	2.5	1505.3	34.4
RVV(1G)	20C	4	1	2.5	1575.1	35.2

RVV(1G)	2C	6	1	2.5	372.3	21.3
RVV(1G)	3C	6	1	2.5	446.6	22.2
RVV(1G)	4C	6	1	2.5	543	23.8
RVV(1G)	5C	6	1	2.5	646.5	25.6
RVV(1G)	6C	6	1	2.5	755.1	27.4
RVV(1G)	7C	6	1	2.5	863.5	29.3
RVV(1G)	8C	6	1	2.5	989.9	31.7
RVV(1G)	9C	6	1	2.5	1115.3	33.6
RVV(1G)	10C	6	1	2.5	1212	33.6
RVV(1G)	11C	6	1	2.5	1319.7	34.5
RVV(1G)	12C	6	1	2.5	1373.9	34.5
RVV(1G)	13C	6	1	2.5	1503.7	36.1
RVV(1G)	14C	6	1	2.5	1614.9	36.1

RVV(2G)	2C	0.75	2	1.3	135	15.8
RVV(2G)	3C	0.75	2	1.3	145	16.2
RVV(2G)	4C	0.75	2	1.3	164	16.9
RVV(2G)	5C	0.75	2	1.3	185	17.6
RVV(2G)	6C	0.75	2	1.3	208	18.4
RVV(2G)	7C	0.75	2	1.3	233	20.8
RVV(2G)	8C	0.75	2	1.6	269	22.6
RVV(2G)	9C	0.75	2	1.6	298	23.4
RVV(2G)	10C	0.75	2	1.6	317	23.4
RVV(2G)	11C	0.75	2	1.6	339	23.8
RVV(2G)	12C	0.75	2	1.6	342	23.8
RVV(2G)	13C	0.75	2	1.6	373	24.5
RVV(2G)	14C	0.75	2	1.6	375	24.5
RVV(2G)	15C	0.75	2	1.6	409	25.3
RVV(2G)	16C	0.75	2	1.6	412	25.3
RVV(2G)	17C	0.75	2	2.5	488	28.1
RVV(2G)	18C	0.75	2	2.5	491	28.1
RVV(2G)	19C	0.75	2	2.5	502	28.1
RVV(2G)	20C	0.75	2	2.5	518	28.6
RVV(2G)	21C	0.75	2	2.5	542	28.9
RVV(2G)	22C	0.75	2	2.5	609	30
RVV(2G)	23C	0.75	2	2.5	627	30.8
RVV(2G)	24C	0.75	2	2.5	629	30.8
RVV(2G)	25C	0.75	2	2.5	654	31.2
RVV(2G)	26C	0.75	2	2.5	664	31.2
RVV(2G)	27C	0.75	2	2.5	667	31.2
RVV(2G)	28C	0.75	2	2.5	703	31.9
RVV(2G)	29C	0.75	2	2.5	706	31.9
RVV(2G)	30C	0.75	2	2.5	717	31.9
RVV(2G)	31C	0.75	2	2.5	755	32.7
RVV(2G)	32C	0.75	2	2.5	766	32.7
RVV(2G)	33C	0.75	2	2.5	769	32.7
RVV(2G)	34C	0.75	2	2.5	810	33.5
RVV(2G)	35C	0.75	2	2.5	820	33.5
RVV(2G)	36C	0.75	2	2.5	824	33.5

RVV(2G)	2C	1	2	1.3	152	16.3
RVV(2G)	3C	1	2	1.3	165	16.8
RVV(2G)	4C	1	2	1.3	188	17.6
RVV(2G)	5C	1	2	1.3	214	18.4
RVV(2G)	6C	1	2	1.3	242	19.3
RVV(2G)	7C	1	2	1.3	273	21.8
RVV(2G)	8C	1	2	1.6	315	23.7
RVV(2G)	9C	1	2	1.6	350	24.5
RVV(2G)	10C	1	2	1.6	374	24.5
RVV(2G)	11C	1	2	1.6	402	25
RVV(2G)	12C	1	2	1.6	406	25
RVV(2G)	13C	1	2	1.6	443	25.8
RVV(2G)	14C	1	2	1.6	447	25.8
RVV(2G)	15C	1	2	1.6	489	26.6
RVV(2G)	16C	1	2	1.6	493	26.6
RVV(2G)	17C	1	2	2.5	577	29.6
RVV(2G)	18C	1	2	2.5	581	29.6
RVV(2G)	19C	1	2	2.5	594	29.6
RVV(2G)	20C	1	2	2.5	614	30
RVV(2G)	21C	1	2	2.5	644	30.5
RVV(2G)	22C	1	2	2.5	726	31.7
RVV(2G)	23C	1	2	2.5	748	32.5
RVV(2G)	24C	1	2	2.5	750	32.5
RVV(2G)	25C	1	2	2.5	782	33
RVV(2G)	26C	1	2	2.5	795	33
RVV(2G)	27C	1	2	2.5	799	33
RVV(2G)	28C	1	2	2.5	843	33.8
RVV(2G)	29C	1	2	2.5	847	33.8
RVV(2G)	30C	1	2	2.5	860	33.8
RVV(2G)	31C	1	2	2.5	908	34.6
RVV(2G)	32C	1	2	2.5	921	34.6
RVV(2G)	33C	1	2	2.5	926	34.6
RVV(2G)	34C	1	2	2.5	976	35.5
RVV(2G)	35C	1	2	2.5	989	35.5
RVV(2G)	36C	1	2	2.5	993	35.5

RVV(2G)	2C	1.25	2	1.3	174	17.3
RVV(2G)	3C	1.25	2	1.3	191	17.8
RVV(2G)	4C	1.25	2	1.3	219	18.7
RVV(2G)	5C	1.25	2	1.3	251	19.7
RVV(2G)	6C	1.25	2	1.3	284	20.7
RVV(2G)	7C	1.25	2	1.6	326	24
RVV(2G)	8C	1.25	2	1.6	365	25.4
RVV(2G)	9C	1.25	2	1.6	406	26.4
RVV(2G)	10C	1.25	2	1.6	441	26.4
RVV(2G)	11C	1.25	2	1.6	476	26.9
RVV(2G)	12C	1.25	2	1.6	484	26.9
RVV(2G)	13C	1.25	2	1.6	528	27.8
RVV(2G)	14C	1.25	2	1.6	536	27.8
RVV(2G)	15C	1.25	2	1.6	584	28.8
RVV(2G)	16C	1.25	2	2.5	633	30.9
RVV(2G)	17C	1.25	2	2.5	683	31.9
RVV(2G)	18C	1.25	2	2.5	691	31.9
RVV(2G)	19C	1.25	2	2.5	711	31.9
RVV(2G)	20C	1.25	2	2.5	735	32.4
RVV(2G)	21C	1.25	2	2.5	771	32.9
RVV(2G)	22C	1.25	2	2.5	868	34.3
RVV(2G)	23C	1.25	2	2.5	887	35.3
RVV(2G)	24C	1.25	2	2.5	892	35.3
RVV(2G)	25C	1.25	2	2.5	929	35.9
RVV(2G)	26C	1.25	2	2.5	950	35.9
RVV(2G)	27C	1.25	2	2.5	958	35.9
RVV(2G)	28C	1.25	2	2.5	1007	36.7
RVV(2G)	29C	1.25	2	2.5	1016	36.7
RVV(2G)	30C	1.25	2	2.5	1036	36.7

RVV(2G)	2C	1.5	2	1.3	188	17.4
RVV(2G)	3C	1.5	2	1.3	206	17.9
RVV(2G)	4C	1.5	2	1.3	237	18.8
RVV(2G)	5C	1.5	2	1.3	273	19.8
RVV(2G)	6C	1.5	2	1.3	312	20.9
RVV(2G)	7C	1.5	2	2.5	400	26.3
RVV(2G)	8C	1.5	2	2.5	448	27.7
RVV(2G)	9C	1.5	2	2.5	497	28.7
RVV(2G)	10C	1.5	2	2.5	531	28.7
RVV(2G)	11C	1.5	2	2.5	569	29.3
RVV(2G)	12C	1.5	2	2.5	576	29.3
RVV(2G)	13C	1.5	2	2.5	627	30.2
RVV(2G)	14C	1.5	2	2.5	633	30.2
RVV(2G)	15C	1.5	2	2.5	690	31.2
RVV(2G)	16C	1.5	2	2.5	696	31.2
RVV(2G)	17C	1.5	2	2.5	757	32.2
RVV(2G)	18C	1.5	2	2.5	763	32.2
RVV(2G)	19C	1.5	2	2.5	782	32.2
RVV(2G)	20C	1.5	2	2.5	810	32.7
RVV(2G)	21C	1.5	2	2.5	851	33.2
RVV(2G)	22C	1.5	2	2.5	965	34.6
RVV(2G)	23C	1.5	2	2.5	995	35.7
RVV(2G)	24C	1.5	2	2.5	998	35.7
RVV(2G)	25C	1.5	2	2.5	1042	36.2
RVV(2G)	26C	1.5	2	2.5	1060	36.2
RVV(2G)	27C	1.5	2	2.5	1067	36.2
RVV(2G)	28C	1.5	2	2.5	1127	37.1
RVV(2G)	29C	1.5	2	2.5	1134	37.1
RVV(2G)	30C	1.5	2	2.5	1153	37.1

RVV(2G)	2C	2	2	1.3	209	15.8
RVV(2G)	3C	2	2	1.3	231	16.4
RVV(2G)	4C	2	2	1.3	268	17.4
RVV(2G)	5C	2	2	1.3	310	18.4
RVV(2G)	6C	2	2	1.3	356	19.5
RVV(2G)	7C	2	2	2.5	451	24.8
RVV(2G)	8C	2	2	2.5	508	26.3
RVV(2G)	9C	2	2	2.5	565	27.4
RVV(2G)	10C	2	2	2.5	605	27.4
RVV(2G)	11C	2	2	2.5	651	28
RVV(2G)	12C	2	2	2.5	660	28
RVV(2G)	13C	2	2	2.5	720	29
RVV(2G)	14C	2	2	2.5	728	29
RVV(2G)	15C	2	2	2.5	795	30
RVV(2G)	16C	2	2	2.5	804	30
RVV(2G)	17C	2	2	2.5	874	31.2
RVV(2G)	18C	2	2	2.5	883	31.2
RVV(2G)	19C	2	2	2.5	906	31.2
RVV(2G)	20C	2	2	2.5	941	31.7
RVV(2G)	21C	2	2	2.5	989	32.3
RVV(2G)	22C	2	2	2.5	1120	33.8
RVV(2G)	23C	2	2	2.5	1155	34.9
RVV(2G)	24C	2	2	2.5	1161	34.9
RVV(2G)	25C	2	2	2.5	1212	35.4
RVV(2G)	26C	2	2	2.5	1235	35.4
RVV(2G)	27C	2	2	2.5	1245	35.4
RVV(2G)	28C	2	2	2.5	1315	36.4
RVV(2G)	29C	2	2	2.5	1325	36.4
RVV(2G)	30C	2	2	2.5	1348	36.4

RVV(2G)	2C	2.5	2	1.3	255	19.5
RVV(2G)	3C	2.5	2	1.3	285	20.2
RVV(2G)	4C	2.5	2	1.3	333	21.3
RVV(2G)	5C	2.5	2	1.3	386	22.6
RVV(2G)	6C	2.5	2	2.5	461	28.4
RVV(2G)	7C	2.5	2	2.5	548	29.7
RVV(2G)	8C	2.5	2	2.5	615	31.5
RVV(2G)	9C	2.5	2	2.5	685	32.9
RVV(2G)	10C	2.5	2	2.5	745	32.9
RVV(2G)	11C	2.5	2	2.5	806	33.6
RVV(2G)	12C	2.5	2	2.5	820	33.6
RVV(2G)	13C	2.5	2	2.5	896	34.8
RVV(2G)	14C	2.5	2	2.5	940	34.8
RVV(2G)	15C	2.5	2	2.5	1033	36.1
RVV(2G)	16C	2.5	2	2.5	1041	36.1
RVV(2G)	17C	2.5	2	2.5	1139	37.4
RVV(2G)	18C	2.5	2	2.5	1147	37.4
RVV(2G)	19C	2.5	2	2.5	1176	37.4

RVV(2G)	2C	4	2	2.5	375	25.2
RVV(2G)	3C	4	2	2.5	417.6	26
RVV(2G)	4C	4	2	2.5	484.8	27.4
RVV(2G)	5C	4	2	2.5	559	28.9
RVV(2G)	6C	4	2	2.5	637.9	30.5
RVV(2G)	7C	4	2	2.5	714.6	32
RVV(2G)	8C	4	2	2.5	806.3	34.1
RVV(2G)	9C	4	2	2.5	903.4	35.7
RVV(2G)	10C	4	2	2.5	987.3	35.7
RVV(2G)	11C	4	2	2.5	1071.8	36.5
RVV(2G)	12C	4	2	2.5	1094.5	36.5
RVV(2G)	13C	4	2	2.5	1199.3	37.8
RVV(2G)	14C	4	2	2.5	1262.3	37.8

RVV(2G)	2C	6	2	2.5	479.5	27.3
RVV(2G)	3C	6	2	2.5	540.2	28.3
RVV(2G)	4C	6	2	2.5	634.4	29.9
RVV(2G)	5C	6	2	2.5	738.4	31.6
RVV(2G)	6C	6	2	2.5	848.7	33.5
RVV(2G)	7C	6	2	2.5	956	35.3
RVV(2G)	8C	6	2	2.5	1083.8	37.8

Contact Details

Shanghai Echu Wire & Cable Co.,Ltd

Contact Person: Ms. Wendy

Tel: 86-021-15021431662

Fax: 86-021-15021431662

Other Products

Pendant Cable For Crane and Lifter RVV2G 16*1.5mm2

Type: Pendant Cable
conductor: bare copper
crane cable: round crane cable
use for: crane parts

Round Pendant Control Cable with 1 Steel For Crane and Lifter RVV1G 12*1.25MM2

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVV-NBR-PUR 4*35

Sheath Material: PUR
Inner Sheath: NBR
Insulation: NBR

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable With Steel, FLEXIBLE CABLE for PASSENGER RVVG-NBR-PUR 3*35+1*16

Sheath Material: PUR
Inner Sheath: NBR
Insulation: NBR

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable With Steel, FLEXIBLE CABLE for PASSENGER RVVG-NBR-PUR 3*35+1*10

Sheath Material: PUR
Inner Sheath: NBR
Insulation: NBR

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable With Steel, FLEXIBLE CABLE for PASSENGER RVVG-NBR-PUR 3*25+1*10

Sheath Material: PUR
Inner Sheath: NBR
Insulation: NBR

Flexible Drum-Reeling Cable, Drum Cable, Reel Cable, FLEXIBLE CABLE for PASSENGER / MATERIAL HOIST RVVG-NBR-PUR 3*16+1*6

Sheath Material: PUR
Inner Sheath: NBR
Insulation: NBR
