Low Smoke Zero Halogen Heat Resistance Data Transmission Cable LIHH

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	CCC,CE,UL
Model Number:	LIYY LIYCY LIYCY-TP LIHH LIHCH

Payment & Shipping Terms:

Minimum Order Quantity:	300M
Price:	USD0.88
Packaging Details:	REELS, DRUM,ROLLS
Delivery Time:	7-10days
Payment Terms:	T/T
Supply Ability:	1000000000000METERS

Contact Now

Detailed Product Description

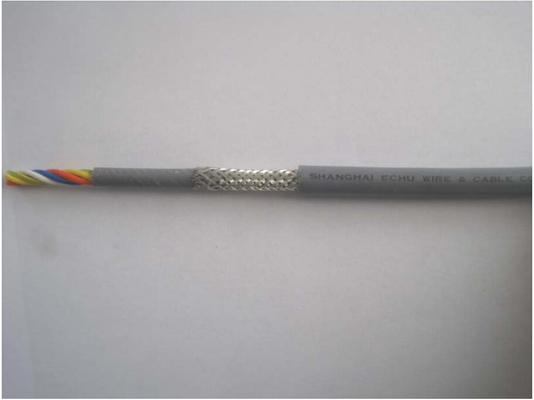

Low Smoke Zero Halogen Heat Resistance Data Transmission Cable LIHH

Application and Description

LiYCY TP twisted cable is used for flexible use with free movement, but without tensile stress or forced
movements in dry, wet and moist areas but are not suitable for open air application. It is commonly used as
control and signal cable in the electronics of computer systems, electronic control equipment, office machines
and measurement devices in the tool making and machine industries. The twisted pair construction reduces
interference (crosstalk) within the cable while the tinned copper braid shield offers optimum protection from
electrical and electromagnetic interference.

Standard and Approval

VDE 0812, VDE 0814, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

Cable Construction

- Plain copper conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5
- PVC core insulation to DIN VDE 0281 part 1
- Color coded to DIN 47100, but without color repetition
- Cores twisted into layers
- Plastic foil separator
- 85% tinned copper braid
- PVC outer jacket to DIN VDE 0281 part 1

Technical Characteristics

- Working voltage: 250 volts
- Test voltage: 1200 volts
- Minimum bending radius: 5 x Ø
- Flexing temperature: -5º C to +70º C
- Static temperature: -30º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

TYPE	Paires	Spec.	Cond. No.	Per Cond.φ	Weight( Kgs/km)	External Dia.
TYPE	Paires	Spec.	Cond. No.	Per Cond.φ	Weight( Kgs/km)	External Dia.
LIYCY(TP)	2Pairs	0.14*2C	18	0.1	36.4	5.9
LIYCY(TP)	3Pairs	0.14*2C	18	0.1	47	6.4
LIYCY(TP)	4Pairs	0.14*2C	18	0.1	55.7	6.9
LIYCY(TP)	5Pairs	0.14*2C	18	0.1	68.3	7.6
LIYCY(TP)	6Pairs	0.14*2C	18	0.1	77.6	8.2
LIYCY(TP)	7Pairs	0.14*2C	18	0.1	83.8	8.2
LIYCY(TP)	8Pairs	0.14*2C	18	0.1	93.2	8.8
LIYCY(TP)	9Pairs	0.14*2C	18	0.1	108.7	9.8
LIYCY(TP)	10Pairs	0.14*2C	18	0.1	123.3	10.6
LIYCY(TP)	11Pairs	0.14*2C	18	0.1	131.4	10.8
LIYCY(TP)	12Pairs	0.14*2C	18	0.1	137.6	10.8
LIYCY(TP)	13Pairs	0.14*2C	18	0.1	147	11.3
LIYCY(TP)	14Pairs	0.14*2C	18	0.1	153.2	11.3
LIYCY(TP)	15Pairs	0.14*2C	18	0.1	168.6	12.1
LIYCY(TP)	16Pairs	0.14*2C	18	0.1	174.8	12.1
LIYCY(TP)	17Pairs	0.14*2C	18	0.1	185	12.6
LIYCY(TP)	18Pairs	0.14*2C	18	0.1	191.2	12.6
LIYCY(TP)	19Pairs	0.14*2C	18	0.1	197.3	12.6
LIYCY(TP)	20Pairs	0.14*2C	18	0.1	205.6	12.9
LIYCY(TP)	21Pairs	0.14*2C	18	0.1	213.7	13.2
LIYCY(TP)	22Pairs	0.14*2C	18	0.1	231.9	14.1
LIYCY(TP)	23Pairs	0.14*2C	18	0.1	249.4	14.9
LIYCY(TP)	24Pairs	0.14*2C	18	0.1	255.6	14.9
LIYCY(TP)	25Pairs	0.14*2C	18	0.1	264.1	15.2
LIYCY(TP)	26Pairs	0.14*2C	18	0.1	270.3	15.2
LIYCY(TP)	27Pairs	0.14*2C	18	0.1	276.4	15.2
LIYCY(TP)	28Pairs	0.14*2C	18	0.1	286.5	15.7
LIYCY(TP)	29Pairs	0.14*2C	18	0.1	292.7	15.7
LIYCY(TP)	30Pairs	0.14*2C	18	0.1	298.9	15.7
LIYCY(TP)	31Pairs	0.14*2C	18	0.1	317.2	16.4
LIYCY(TP)	32Pairs	0.14*2C	18	0.1	323.4	16.4
LIYCY(TP)	33Pairs	0.14*2C	18	0.1	329.5	16.4
LIYCY(TP)	34Pairs	0.14*2C	18	0.1	340.5	17
LIYCY(TP)	35Pairs	0.14*2C	18	0.1	346.7	17
LIYCY(TP)	36Pairs	0.14*2C	18	0.1	352.9	17

LIYCY(TP)	2Pairs	0.25*2C	16	0.14	48.9	6.8
LIYCY(TP)	3Pairs	0.25*2C	16	0.14	59.5	7.1
LIYCY(TP)	4Pairs	0.25*2C	16	0.14	75.5	7.8
LIYCY(TP)	5Pairs	0.25*2C	16	0.14	88.3	8.5
LIYCY(TP)	6Pairs	0.25*2C	16	0.14	105.8	9.3
LIYCY(TP)	7Pairs	0.25*2C	16	0.14	115.1	9.3
LIYCY(TP)	8Pairs	0.25*2C	16	0.14	128.4	10
LIYCY(TP)	9Pairs	0.25*2C	16	0.14	148.4	11.1
LIYCY(TP)	10Pairs	0.25*2C	16	0.14	168.3	12
LIYCY(TP)	11Pairs	0.25*2C	16	0.14	179.9	12.4
LIYCY(TP)	12Pairs	0.25*2C	16	0.14	189.2	12.4
LIYCY(TP)	13Pairs	0.25*2C	16	0.14	202.5	12.9
LIYCY(TP)	14Pairs	0.25*2C	16	0.14	211.8	12.9
LIYCY(TP)	15Pairs	0.25*2C	16	0.14	232.1	13.8
LIYCY(TP)	16Pairs	0.25*2C	16	0.14	241.4	13.8
LIYCY(TP)	17Pairs	0.25*2C	16	0.14	255.7	14.4
LIYCY(TP)	18Pairs	0.25*2C	16	0.14	264.9	14.4
LIYCY(TP)	19Pairs	0.25*2C	16	0.14	274.2	14.4
LIYCY(TP)	20Pairs	0.25*2C	16	0.14	293.2	15
LIYCY(TP)	21Pairs	0.25*2C	16	0.14	305.1	15.3
LIYCY(TP)	22Pairs	0.25*2C	16	0.14	329.2	16.4
LIYCY(TP)	23Pairs	0.25*2C	16	0.14	344.1	17
LIYCY(TP)	24Pairs	0.25*2C	16	0.14	353.4	17
LIYCY(TP)	25Pairs	0.25*2C	16	0.14	365.5	17.4
LIYCY(TP)	26Pairs	0.25*2C	16	0.14	374.8	17.4
LIYCY(TP)	27Pairs	0.25*2C	16	0.14	384.1	17.4
LIYCY(TP)	28Pairs	0.25*2C	16	0.14	406.9	18.2
LIYCY(TP)	29Pairs	0.25*2C	16	0.14	416.2	18.2
LIYCY(TP)	30Pairs	0.25*2C	16	0.14	425.4	18.2
LIYCY(TP)	31Pairs	0.25*2C	16	0.14	440.4	18.8
LIYCY(TP)	32Pairs	0.25*2C	16	0.14	449.6	18.8
LIYCY(TP)	33Pairs	0.25*2C	16	0.14	458.9	18.8
LIYCY(TP)	34Pairs	0.25*2C	16	0.14	483.5	19.7
LIYCY(TP)	35Pairs	0.25*2C	16	0.14	492.8	19.7
LIYCY(TP)	36Pairs	0.25*2C	16	0.14	502	19.7

LIYCY(TP)	2Pairs	0.34*2C	7	0.25	53.8	7
LIYCY(TP)	3Pairs	0.34*2C	7	0.25	66.8	7.3
LIYCY(TP)	4Pairs	0.34*2C	7	0.25	85	8.1
LIYCY(TP)	5Pairs	0.34*2C	7	0.25	99.9	8.8
LIYCY(TP)	6Pairs	0.34*2C	7	0.25	119.6	9.7
LIYCY(TP)	7Pairs	0.34*2C	7	0.25	130.8	9.7
LIYCY(TP)	8Pairs	0.34*2C	7	0.25	151.3	10.6
LIYCY(TP)	9Pairs	0.34*2C	7	0.25	168.6	11.5
LIYCY(TP)	10Pairs	0.34*2C	7	0.25	190.2	12.4
LIYCY(TP)	11Pairs	0.34*2C	7	0.25	203.9	12.7
LIYCY(TP)	12Pairs	0.34*2C	7	0.25	215.2	12.7
LIYCY(TP)	13Pairs	0.34*2C	7	0.25	237.6	13.6
LIYCY(TP)	14Pairs	0.34*2C	7	0.25	248.8	13.6
LIYCY(TP)	15Pairs	0.34*2C	7	0.25	265	14.3
LIYCY(TP)	16Pairs	0.34*2C	7	0.25	276.2	14.3
LIYCY(TP)	17Pairs	0.34*2C	7	0.25	299.8	15.2
LIYCY(TP)	18Pairs	0.34*2C	7	0.25	311	15.2
LIYCY(TP)	19Pairs	0.34*2C	7	0.25	322.2	15.2
LIYCY(TP)	20Pairs	0.34*2C	7	0.25	336.3	15.5
LIYCY(TP)	21Pairs	0.34*2C	7	0.25	350.2	15.8
LIYCY(TP)	22Pairs	0.34*2C	7	0.25	376.8	17
LIYCY(TP)	23Pairs	0.34*2C	7	0.25	402.4	17.9
LIYCY(TP)	24Pairs	0.34*2C	7	0.25	413.6	17.9
LIYCY(TP)	25Pairs	0.34*2C	7	0.25	428	18.2
LIYCY(TP)	26Pairs	0.34*2C	7	0.25	439.2	18.2
LIYCY(TP)	27Pairs	0.34*2C	7	0.25	450.4	18.2
LIYCY(TP)	28Pairs	0.34*2C	7	0.25	467	18.8
LIYCY(TP)	29Pairs	0.34*2C	7	0.25	478.2	18.8
LIYCY(TP)	30Pairs	0.34*2C	7	0.25	489.4	18.8
LIYCY(TP)	31Pairs	0.34*2C	7	0.25	515.8	19.7
LIYCY(TP)	32Pairs	0.34*2C	7	0.25	527.1	19.7
LIYCY(TP)	33Pairs	0.34*2C	7	0.25	538.3	19.7
LIYCY(TP)	34Pairs	0.34*2C	7	0.25	556	20.3
LIYCY(TP)	35Pairs	0.34*2C	7	0.25	567.2	20.3
LIYCY(TP)	36Pairs	0.34*2C	7	0.25	578.4	20.3
