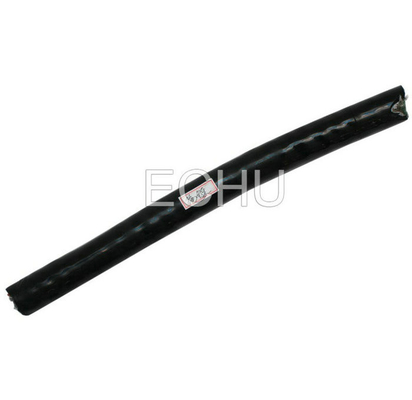

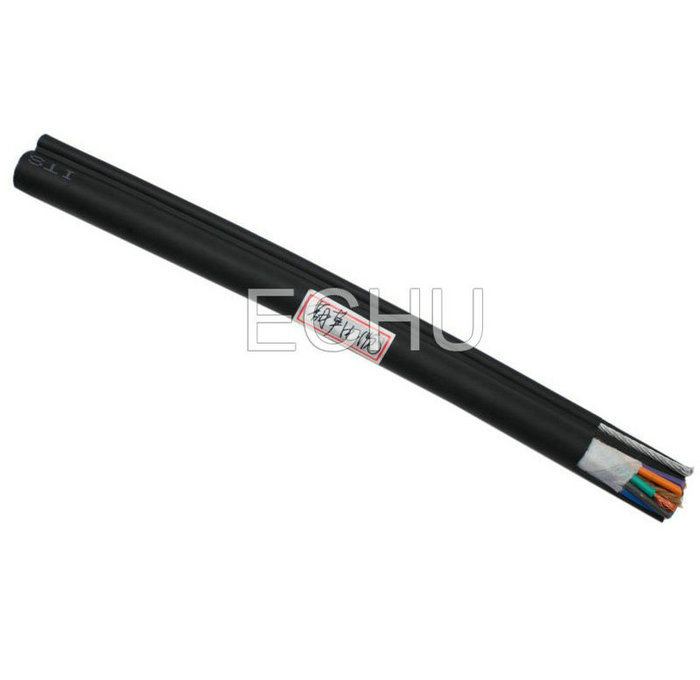

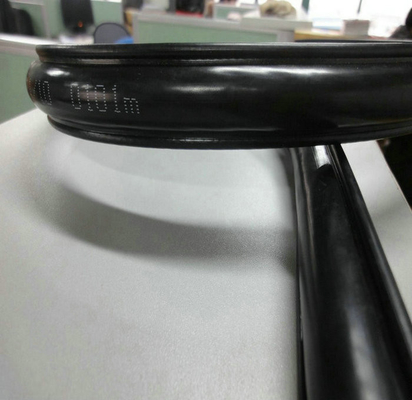

Pendant Cable :
Special flexibility
Temperature range:-15 to +70
Bending radius :20 X outer diameter
one or two steel rope
Applications:
It is the control cable being used for cranes and other appliances in dry or wet indoor.
Properties:
In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4GN and the height 150m. For the adoption of modified PVC sheath,the product has an excellent properties and safty service.
Structure:

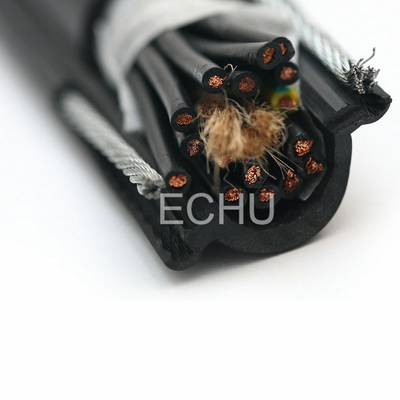

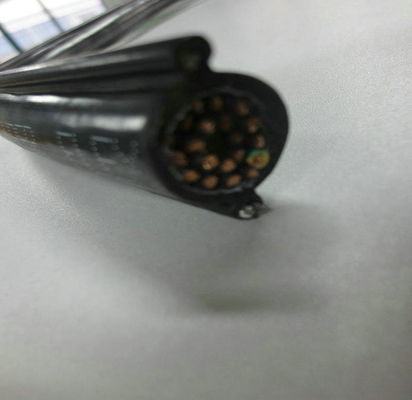

Conductor: Fine strands of oxygen-free copper wire. According to VDE0295 CLASS 5.
Color: Various color cores with number Acc.to JISC3306
Black wit white number and green/yellow acc.to IEC227
Inner liner: non-woven fabric wrapping to release impact

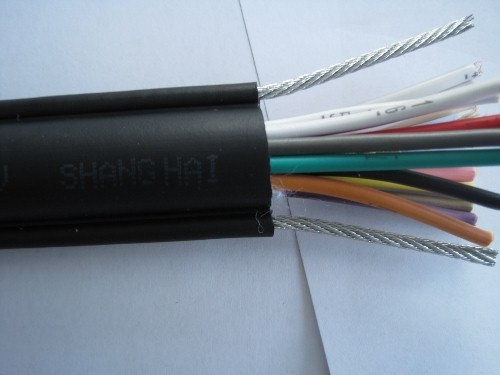

Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.
Outer sheath: special PVC, black (RAL9005)
Rated Voltage:<1.5mm2: 300/500v, >1.5mm2 :450/750v Test Voltage:<1.5MM2:2500V , >1.5MM2:3000V
